Differences between Thinkdiag2 and Ediag Plus

Thinkdiag 2 vs Kingbolen Ediag Plus: What are the differences?

If you are wondering what the differences are between the Kingbolen Ediag Plus and the Thinkcar Thinkdiag 2 adapter, you are in the right place. Below, we analyze the main features, similarities and differences between these two diagnostic scanners.

1. General Features

Ediag Plus and Thinkdiag 2 are both scanners designed for diagnosing the electronic systems of vehicles of different brands.

- Ediag Plus is manufactured by Kingbolen.

- Thinkdiag 2 is manufactured by Thinkcar.

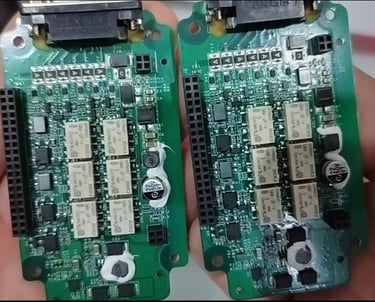

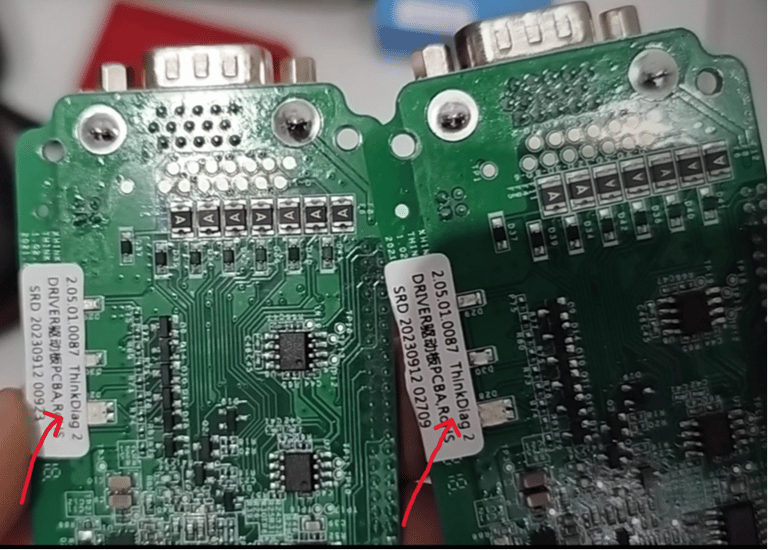

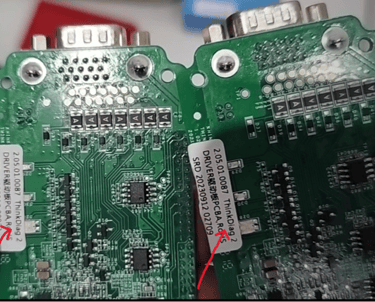

Both devices share the same hardware. In fact, inside Ediag Plus you will find Thinkcar branded components.

Both devices use very similar applications (Ediag Plus / ThinkDiag +), which allow you to read and erase errors in electronic systems, view data flows in digital and graphic format, and record them. They also offer numerous specific (or reset) functions such as:

- Oil service reset

- Injector coding

- Brake bleeding with ABS pump

- Particulate filter regeneration (DPF, FAP)

- Throttle valve adaptation

- Electric parking brake extension

- TPMS sensor coding

- Steering angle sensor calibration (SAS)

- Battery calibration

- Immobilizer programming

- Transmission adaptation

- Suspension adaptation

- EGR adaptation

- Sunroof learning

Supported protocols:

- ISO 14230-4 (KWP2000)

- ISO 15765-4 (CAN)

- ISO 9141-2 (IOS)

- ISO 14229 (UDS)

- SAEJ 1850 (VPW and PWM)

- CAN-FD

The software supports over 150 car brands, with free updates for one year after device activation.

The devices are an alternative to Launch DBSCar VII, and are compatible with Android and iOS operating systems.

2. Appearance

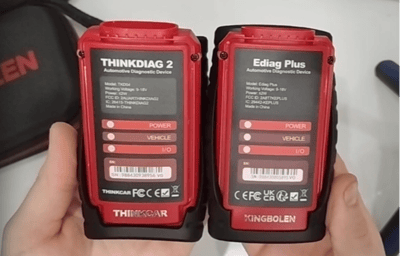

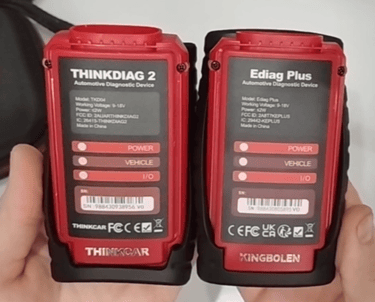

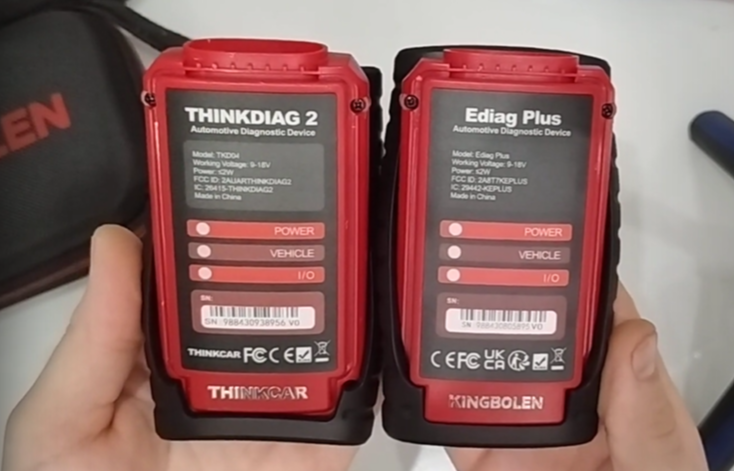

Ediag Plus and Thinkdiag 2 are aesthetically identical. Both include a main cable, a quick start guide and a user manual. Their serial numbers start with 98843.

3. Software

The functionality and vehicle coverage of both software are the same. You can also activate the Ediag Plus scanner via the Thinkdiag+ app, allowing you to use it on both programs.

4. Technical Specifications

Both devices use the Atmel ATSAME70Q20CN processor with a speed of 300 MHz and 1024 KB of flash memory.

5. Price

Currently, Ediag Plus is slightly cheaper than Thinkdiag 2:

- Ediag Plus: 150 euros

- Thinkdiag 2: 170 euros

Technical specifications:

- Bluetooth: Dual Mode 5.1

- Diagnostic interface: DB15

- Operating voltage: 9-18 V

- Operating temperature: -10℃ ~ 50℃

- Storage temperature: -20℃ ~ 60℃

- Dimensions: 120.5 mm x 65 mm x 29 mm

- Case material: ABS + PC + TPU with rubber edge

- OBD cable length: 65 centimeters
